Powders for Powder Coating: Complete Guide to Types, Materials, and Applications

Key Takeaways

• Powder coating powders are polymer resins combined with pigments and curing agents that create durable, attractive finishes when electrostatically applied to metal surfaces
• Two main categories exist: thermoplastic powders (can be remelted and recycled) and thermoset powders (form permanent chemical bonds when cured)
• Popular powder types include polyester (most versatile), epoxy (best chemical resistance), polyurethane (superior hardness), and specialized formulations like fluoropolymers for extreme weather resistance
• Powder selection depends on application requirements including UV exposure, chemical resistance, temperature tolerance, and desired finish characteristics
• Modern powder coatings can withstand temperatures up to 1000°F and offer thousands of color, texture, and gloss combinations

Understanding Powders for Powder Coating

When you need a finish that can withstand thousands of hours of salt spray testing while delivering a perfect smooth finish, powders for powder coating offer an unmatched combination of durability and aesthetics. These specialized materials have revolutionized surface finishing since their introduction in the 1960s, providing an environmentally friendly alternative to traditional liquid paints.

Powder coating powders consist of finely ground polymer resins mixed with pigments, curing agents, and carefully selected additives. Unlike liquid coatings that rely on solvents for application, these dry powders create their protective and decorative properties through an electrostatic application process followed by heat curing.

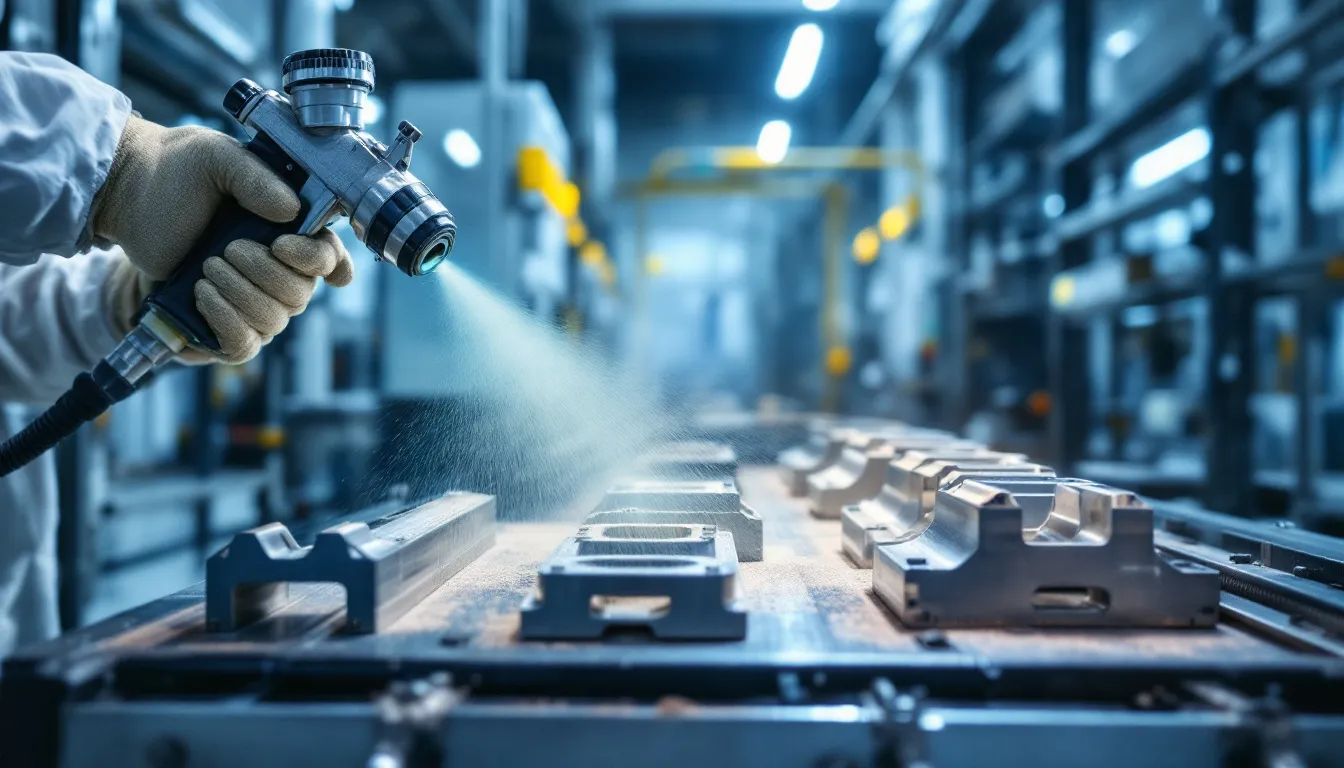

The electrostatic application process works by charging powder particles as they pass through a specialized gun. These charged particles are attracted to grounded metal substrates, creating an even coating that adheres until the curing process begins. This method achieves remarkable efficiency – powder utilization rates exceed 95%, compared to liquid coatings where overspray often results in significant material waste.

During the curing process, heat transforms the powder into a continuous film. The temperature and time requirements vary depending on the powder type, but most formulations cure at temperatures between 300°F and 450°F for 10-20 minutes. This controlled process ensures optimal cross-linking and creates the final protective finish that makes powder coatings suitable for demanding applications.

The environmental advantages are substantial. Powder coatings contain virtually zero volatile organic compounds (VOCs), eliminating harmful emissions during application. Additionally, overspray can be collected and reused, making the process extremely material-efficient and cost-effective for high-volume operations.

Thermoplastic vs Thermoset Powder Categories

Understanding the fundamental difference between thermoplastic and thermoset powder categories is crucial for selecting the right coating for your next project. These two types behave differently during application and offer distinct performance characteristics that make each suitable for specific applications.

Thermoplastic Powders

Thermoplastic powders maintain their ability to be reheated, melted, and reformed multiple times without undergoing chemical changes. This characteristic makes them unique among coating options and provides several practical benefits for specific applications.

The recycling capabilities of thermoplastic powders offer significant environmental and economic advantages. When parts need refinishing or when overspray occurs during application, the material can be ground up and reprocessed without losing its essential properties. This creates a truly sustainable coating option for environmentally conscious manufacturers.

Thicker application possibilities represent another key advantage. Unlike thermoset formulations that can become brittle when applied in heavy films, thermoplastic powders maintain flexibility even at greater thicknesses. This makes them ideal for applications requiring enhanced protection or where substrate imperfections need substantial coverage.

However, thermoplastic powders do have limitations in high-temperature environments. Since they can be remelted, they’re not suitable for applications involving continuous exposure to elevated temperatures. The maximum service temperature typically ranges from 200°F to 300°F, depending on the specific formulation.

Common applications include metal parts requiring exceptional durability, automotive components like engine covers and trim pieces, and kitchen appliances where easy cleaning and maintenance are priorities. Nylon-based thermoplastic powders are particularly popular for coating hand tools, cable fittings, and outdoor equipment due to their outstanding impact resistance and flexibility.

Thermoset Powders

Thermoset powders undergo a chemical cross-linking process during curing that creates permanent bonds within the coating structure. Once cured, these materials cannot be remelted or reformed, which contributes to their exceptional performance in demanding environments.

The chemical cross-linking process creates a three-dimensional network that provides superior heat resistance, often withstanding continuous exposure to temperatures up to 1000°F. This makes thermoset powders the preferred choice for exhaust systems, oven components, and industrial equipment operating in high-temperature environments.

Superior chemical resistance is another hallmark of thermoset formulations. The permanent cross-linked structure resists attack from solvents, acids, alkalis, and other aggressive chemicals that would quickly degrade other coating types. This chemical resistance makes thermoset powders essential for chemical processing equipment, laboratory fixtures, and marine applications.

The non-recyclable nature of thermoset powders stems from their permanent chemical structure. Once cured, these coatings cannot be ground up and reused like thermoplastic materials. While this represents a limitation from a sustainability perspective, the exceptional durability often results in much longer service life, offsetting the initial material investment.

Brittleness concerns can arise with thicker applications of thermoset powders. As film thickness increases beyond optimal ranges, the coating may become prone to cracking or chipping under impact. Proper application techniques and film thickness control are essential for achieving optimal performance.

Ideal uses for thermoset powders include high-temperature environments where thermoplastic materials would fail, exhaust systems requiring both heat and corrosion resistance, and industrial equipment exposed to aggressive chemicals or extreme weather conditions.

Common Powder Coating Material Types

The selection of powder coating materials has expanded dramatically over the past decades, with each chemistry offering unique advantages for specific applications. Understanding the characteristics of common powder types helps ensure your coating choice aligns with performance requirements and environmental conditions.

Polyester Powders

Polyester powders represent the most widely used powder coating chemistry in the industry, accounting for approximately 60% of global powder coating consumption. Their popularity stems from an excellent balance of performance, cost-effectiveness, and versatility across diverse applications.

The extensive color selection available with polyester powders is virtually unlimited. Manufacturers can create thousands of custom colors, and the chemistry accommodates various gloss levels from deep matte finishes to high gloss surfaces. This flexibility makes polyester powders suitable for both functional and decorative applications.

UV resistance lasting 1-3 years makes polyester formulations suitable for outdoor applications, though performance varies significantly based on specific formulation and environmental exposure. Advanced polyester powders with specialized additives can provide extended outdoor durability, while standard formulations work well for indoor use or short-term outdoor exposure.

Weather, impact, and abrasion resistance properties make polyester powders ideal for architectural applications, outdoor furniture, and automotive components. The coating maintains its integrity under thermal cycling, resists moisture penetration, and provides excellent protection against corrosion when properly applied.

Applications for polyester powders span numerous industries. Outdoor furniture manufacturers rely on polyester coatings for their weather resistance and color stability. Fencing systems benefit from the corrosion protection and low maintenance requirements. Automotive parts like wheels, bumpers, and trim pieces use polyester powders for their combination of durability and appearance. Architectural elements including window frames, curtain walls, and decorative panels depend on polyester formulations for long-term performance and aesthetic appeal.

Epoxy Powders

Epoxy powders deliver superior chemical and corrosion resistance among all coating types, making them the preferred choice for applications involving aggressive chemical exposure or demanding environmental conditions. The molecular structure of epoxy resins creates exceptional barrier properties that protect substrates from chemical attack.

Excellent metal adhesion characterizes epoxy powders, often eliminating the need for specialized primers or surface treatments. This strong bond formation contributes to the coating’s ability to provide long-term protection even in challenging environments. The adhesion properties also result in excellent coverage and a uniform finish quality that meets demanding appearance standards.

Indoor use limitations exist due to UV degradation and chalking when exposed to sunlight. Epoxy powders can yellow, lose gloss, and develop surface chalking relatively quickly under UV exposure, making them unsuitable for outdoor applications unless used as a primer under a UV-stable topcoat.

Common use as primer coatings represents a significant application area for epoxy powders. When used as a base coat under polyester or polyurethane topcoats, epoxy provides excellent corrosion protection while the topcoat delivers UV stability and color retention. This two-coat system combines the best characteristics of both chemistries.

Ideal applications for epoxy powders include industrial equipment exposed to chemicals, such as chemical processing tanks, laboratory benches, and pharmaceutical equipment. Indoor metal fixtures like electrical enclosures, appliance components, and architectural hardware benefit from epoxy’s chemical resistance and excellent appearance. The coating also excels in marine applications below the waterline, where UV exposure is minimal but chemical and corrosion resistance are critical.

Polyurethane Powders

Polyurethane powders create harder coating characteristics compared to polyester formulations, delivering exceptional durability and resistance properties that make them suitable for premium applications requiring superior performance.

Enhanced weathering and anti-corrosion properties distinguish polyurethane from other coating types. The unique chemical structure provides outstanding resistance to UV degradation, moisture penetration, and chemical attack. These properties make polyurethane powders particularly valuable for applications requiring extended outdoor exposure or contact with aggressive environments.

Resistance to humidity, chemicals, and oils makes polyurethane coatings ideal for applications in humid environments, chemical processing facilities, and automotive applications where oil and fuel contact is expected. The coating maintains its protective properties even under continuous exposure to these challenging conditions.

Smooth finish capabilities allow polyurethane powders to create extremely attractive decorative applications. The excellent flow characteristics result in a smooth, even surface that enhances the appearance of coated parts while providing functional benefits like easy cleaning and maintenance.

Applications suitable for both indoor and outdoor metal products include premium automotive components like wheels and trim, high-end furniture requiring both durability and appearance, architectural hardware exposed to weather, and industrial equipment where both protection and aesthetics are important.

Specialized Material Formulations

Beyond the common powder types, specialized formulations address specific performance requirements that standard chemistries cannot meet. These advanced materials often command premium prices but deliver exceptional performance in demanding applications.

Nylon powders provide exceptional solvent, oil, and impact resistance for industrial parts requiring extreme durability. The thermoplastic nature allows for thick application without brittleness, while the chemical structure resists attack from most industrial solvents and oils. Common applications include automotive underhood components, industrial machinery parts, and hand tools requiring enhanced grip and durability.

PVC powders offer FDA-approved formulations for food contact applications, combined with excellent electrical insulation properties. These specialized coatings meet stringent regulatory requirements for direct food contact while providing easy-clean surfaces that resist bacterial growth. Applications include food processing equipment, commercial kitchen appliances, and medical device components.

Polyolefin powders deliver superior abrasion and chemical resistance with easy-clean surfaces that resist staining and contamination. The low surface energy creates non-stick properties valuable in food processing and industrial applications. These materials work well for dishwasher racks, industrial conveyors, and chemical storage equipment.

Fluoropolymers including FEVE and PVDF represent premium weathering and color retention technologies for architectural exteriors. These advanced materials can withstand decades of outdoor exposure while maintaining their original appearance and protective properties. Applications include high-end architectural panels, aerospace components, and industrial equipment requiring extreme durability.

Silicon-based powders provide extreme heat resistance for exhaust systems and oven components, withstanding continuous exposure to temperatures exceeding 1000°F. These specialized formulations maintain their protective properties under thermal cycling that would destroy conventional coatings.

Hybrid and Specialty Powder Formulations

The development of hybrid powder formulations represents a significant advancement in coating technology, allowing manufacturers to combine the beneficial characteristics of different chemistries while minimizing individual limitations. These formulations create opportunities for enhanced performance that pure chemistries cannot achieve.

Epoxy-polyester hybrids combine the excellent chemical resistance and adhesion of epoxy with the improved weatherability and UV stability of polyester resins. Typical blending ratios range from 50:50 to 70:30 epoxy to polyester, with each ratio offering slightly different performance characteristics. The 60:40 blend represents the most popular commercial formulation, providing an optimal balance of properties for most applications.

Acrylic powders create high-gloss, wet-look automotive finishes that deliver exceptional appearance and durability. These specialty formulations provide superior gloss retention and color stability compared to conventional chemistries, making them ideal for premium automotive applications and high-end consumer products where appearance is critical.

Reduced brittleness characterizes many hybrid formulations compared to pure chemistries. By combining flexible and rigid components, formulators can create coatings that resist cracking and chipping while maintaining excellent hardness and chemical resistance. This improved flexibility extends coating life in applications involving thermal cycling or mechanical stress.

Improved outdoor durability represents another significant advantage of hybrid formulations. While pure epoxy powders degrade rapidly under UV exposure, epoxy-polyester hybrids can provide acceptable outdoor performance for 2-5 years depending on environmental conditions and specific formulation.

Custom formulation possibilities allow coating manufacturers to tailor hybrid chemistries for specific performance requirements. By adjusting the ratio of component resins and incorporating specialized additives, formulators can optimize properties like flexibility, chemical resistance, cure temperature, or appearance characteristics for particular applications.

The balance between cost and performance characteristics makes hybrid formulations attractive for many applications. While specialty hybrids may cost more than standard polyester powders, they often provide significantly better performance at a lower cost than premium chemistries like fluoropolymers or specialized high-performance formulations.

Finish Types and Aesthetic Options

The aesthetic possibilities with modern powder coatings extend far beyond basic color selection, encompassing a wide range of gloss levels, textures, and special effects that can enhance both functional performance and visual appeal.

Gloss Level Variations

Gloss level selection significantly impacts both the appearance and functional performance of powder coated surfaces. Understanding the characteristics of different gloss ranges helps ensure the finish aligns with both aesthetic goals and practical requirements.

Matte finishes typically measure below 20 gloss units and offer several practical advantages. These low-gloss surfaces effectively hide minor surface imperfections in the substrate, making them ideal for parts with machining marks, weld lines, or other manufacturing artifacts. The subtle appearance of matte finishes creates an elegant, sophisticated look that works well for architectural applications, high-end consumer products, and applications where glare reduction is important.

Semi-gloss options, measuring 20-70 gloss units, provide balanced aesthetics and practicality for many applications. These finishes offer easier cleaning than matte surfaces while still providing some ability to hide minor substrate imperfections. Semi-gloss finishes work well for office furniture, appliances, and architectural elements where both appearance and maintenance are considerations.

High-gloss finishes, measuring above 70 gloss units, create dramatic visual impact while offering practical cleaning advantages. The smooth, reflective surface makes contamination removal easier and provides excellent barrier properties against moisture and chemical penetration. However, high-gloss surfaces highlight every substrate imperfection, requiring careful surface preparation for optimal results.

Industry preferences vary significantly based on application requirements. Medical and food processing equipment manufacturers typically favor high-gloss finishes for their sanitation benefits and easy cleaning properties. Automotive applications often use semi-gloss or high-gloss finishes to enhance visual appeal, while architectural applications may use any gloss level depending on design requirements and maintenance considerations.

Texture and Special Effects

Textured coatings provide functional benefits that extend beyond aesthetic considerations. Non-slip surfaces created through controlled texture patterns enhance safety in industrial and architectural applications. These textured finishes also create easy-grip applications for hand tools, equipment handles, and consumer products where secure handling is important.

Cosmetic texture options effectively hide metal surface imperfections that would be visible under smooth finishes. Controlled texture patterns can create the appearance of brushed metal, leather, or other natural materials while providing the durability and corrosion resistance of powder coating. These effects allow designers to achieve specific aesthetic goals while maintaining functional performance.

Metallic finishes incorporate color-shifting flakes and pearls that create dynamic visual effects under different lighting conditions. These specialty formulations can simulate the appearance of chrome, brushed aluminum, copper, bronze, gold, or silver while providing superior durability compared to actual metal plating. The metallic effects work particularly well for automotive applications, consumer electronics, and decorative hardware.

Specialty effects continue to expand the creative possibilities with powder coating. Glow-in-the-dark formulations provide safety marking applications for emergency equipment and exit signs. Neon colors create high-visibility applications for safety equipment and consumer products. Transparent clear coatings protect underlying substrates while maintaining their natural appearance.

Application challenges with metallic powders require special consideration during the coating process. The metallic flakes can interfere with electrostatic charging, requiring modified gun settings and application techniques. Careful control of film thickness and curing parameters ensures optimal metallic effect development and appearance consistency.

Powder Selection Criteria and Performance Factors

Selecting the optimal powder coating for any application requires careful evaluation of multiple performance factors and environmental conditions. A systematic approach to powder selection ensures that the chosen coating will deliver the required performance throughout its intended service life.

Environmental exposure assessment represents the most critical factor in powder selection. UV exposure levels determine whether UV-stable chemistries like polyester or fluoropolymers are necessary, or whether less expensive epoxy formulations will provide adequate performance. Moisture exposure levels influence the need for enhanced corrosion resistance and barrier properties. Chemical contact requirements determine whether specialized chemical-resistant formulations are necessary.

Temperature requirements encompass both service temperature and thermal cycling conditions. Applications involving continuous high-temperature exposure require thermoset formulations with appropriate heat resistance. Parts subjected to thermal cycling need coatings with good flexibility and thermal expansion compatibility to prevent cracking or delamination.

Mechanical properties including flexibility, impact resistance, and hardness must align with application requirements. Parts subject to mechanical stress or impact require flexible formulations, while applications demanding scratch resistance need harder coatings. The balance between hardness and flexibility often determines the optimal chemistry selection.

Color stability and fade resistance requirements influence both chemistry selection and pigment choice. Outdoor applications requiring long-term color retention need UV-stable resins and high-quality pigments. Indoor applications may accept less expensive formulations that provide adequate initial color but may fade under UV exposure.

Application thickness limitations affect both coating selection and application parameters. Some chemistries become brittle when applied too thickly, while others may not provide adequate protection at minimum film thicknesses. Understanding these limitations ensures proper coating specification and application.

Cost considerations must balance initial material costs against long-term performance benefits. While premium formulations may cost significantly more initially, their extended service life often provides better overall value. The total cost of ownership should include material costs, application costs, and maintenance or replacement costs over the coating’s expected service life.

Substrate compatibility and primer requirements depend on both the substrate material and the coating chemistry. Some powder coatings provide excellent adhesion to properly prepared steel, while others may require specialized primers or surface treatments. Aluminum and galvanized steel often need different surface preparation or primer systems than standard carbon steel.

Quality Standards and Testing Requirements

Establishing quality standards and testing requirements ensures that powder coatings will deliver expected performance throughout their intended service life. Standardized test methods provide objective measures of coating performance and allow meaningful comparison between different formulations.

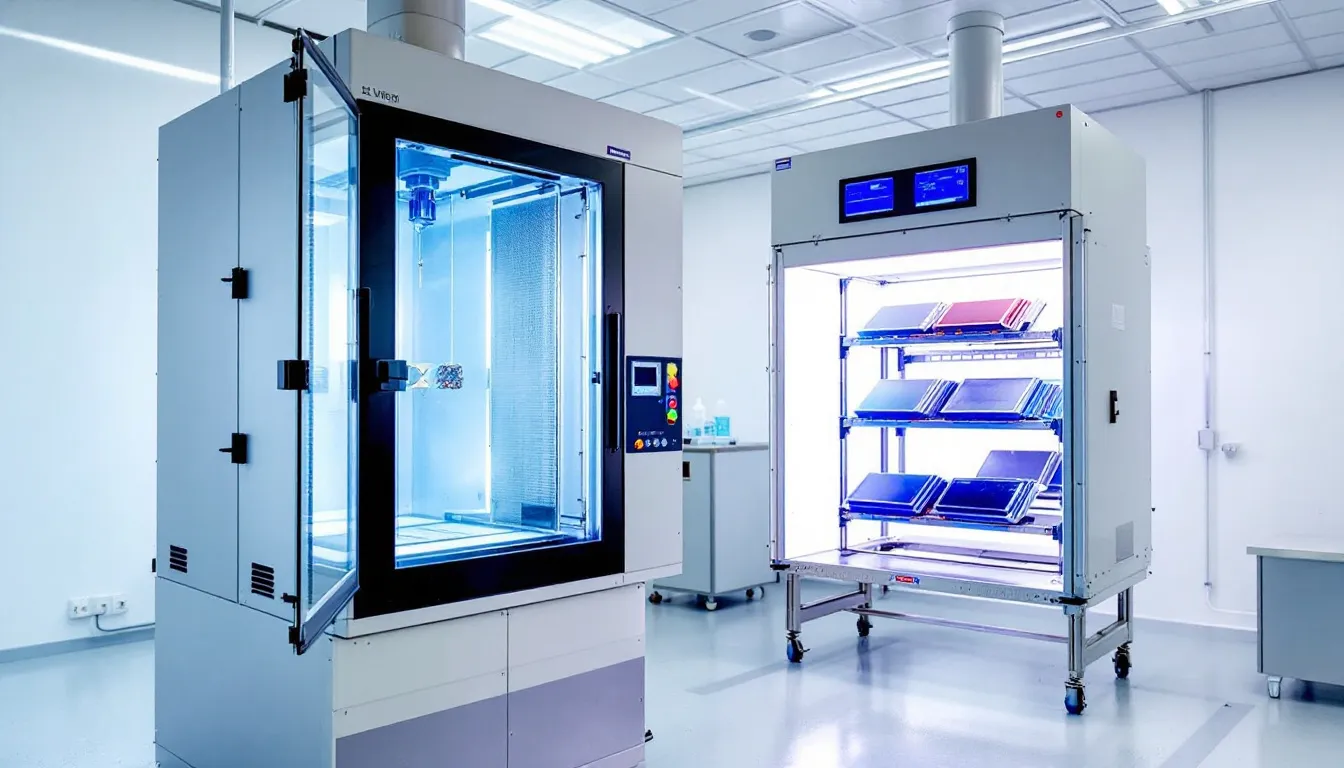

ASTM B-117 salt spray testing provides standardized evaluation of corrosion resistance for 1000+ hour durability validation. This accelerated test exposes coated panels to a controlled salt spray environment that simulates years of outdoor exposure in a matter of weeks. Test results help predict long-term corrosion performance and allow comparison of different coating systems.

UV stability testing evaluates outdoor exposure applications using accelerated weathering equipment that concentrates UV radiation, moisture, and temperature cycling. Tests like ASTM G154 and ASTM D4587 provide standardized conditions for evaluating color retention, gloss retention, and coating integrity under simulated outdoor conditions.

Chemical resistance testing for industrial environments involves exposure to specific chemicals that the coating may encounter in service. Standard test methods evaluate the coating’s resistance to acids, alkalis, solvents, and other aggressive chemicals over specified time periods and concentrations.

Temperature cycling and thermal shock testing evaluate the coating’s ability to withstand repeated heating and cooling cycles without cracking, delamination, or other failure modes. These tests are particularly important for applications involving varying temperatures or thermal cycling conditions.

Adhesion testing standards measure the bond strength between the coating and substrate, providing critical information about long-term performance. Cross-cut adhesion tests, pull-off adhesion tests, and bend tests evaluate different aspects of coating adhesion under various stress conditions.

Frequently Asked Questions

What is the difference between TGIC and TGIC-free powder formulations?

TGIC (Triglycidyl Isocyanurate) was traditionally used as a curing agent in polyester powders but has been largely replaced due to health concerns. TGIC-free formulations use alternative curing agents like beta-hydroxyalkylamide (HAA) or primid, providing similar performance characteristics while being safer to handle and more environmentally friendly. The transition to TGIC-free chemistry has been driven by regulatory requirements and worker safety considerations, with modern formulations often outperforming their TGIC-containing predecessors in terms of weatherability and appearance retention.

Can powder coating powders be mixed to create custom colors?

While it’s technically possible to blend compatible powder chemistries, it’s not recommended for critical applications. Color matching should be done through professional formulation services that ensure proper chemistry compatibility, cure characteristics, and performance consistency. Mixing different powder types can result in poor adhesion, uneven curing, or compromised coating properties. Professional color matching services use sophisticated equipment to create custom colors while maintaining all performance characteristics of the base chemistry.

How long can powder coating powders be stored before they expire?

Most thermoset powder coatings have a shelf life of 12-24 months when stored in cool, dry conditions (below 80°F and low humidity). Thermoplastic powders can last longer, sometimes 2-3 years under proper storage conditions. Storage in original sealed containers away from heat sources and moisture is crucial for maintaining powder quality. Expired powders may show poor flow characteristics, reduced gloss levels, or incomplete curing that can compromise both appearance and performance.

What causes powder coating to have an orange peel texture, and how can it be prevented?

Orange peel texture results from several factors: incorrect powder flow properties, improper gun settings, inadequate preheating of the substrate, or incorrect oven temperature profiles. Prevention involves proper powder selection for the application method, optimizing electrostatic gun parameters including voltage and flow rate, ensuring proper substrate preparation and preheating, and maintaining consistent curing temperatures throughout the coating thickness. Environmental factors like humidity and temperature during application also affect surface smoothness.

Are there food-safe powder coating options available?

Yes, FDA-approved powder coatings are available, particularly PVC-based formulations and certain epoxy formulations that meet FDA regulations for direct and indirect food contact. These coatings must pass specific migration testing and comply with FDA 21 CFR 175.300 standards for food contact surfaces. Applications include food processing equipment, commercial kitchen equipment, and food storage containers where both safety and easy cleaning are essential requirements.
